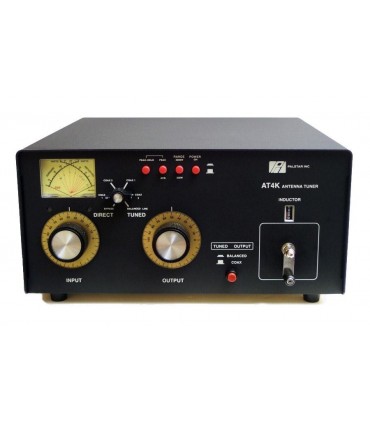

AT-4-K - 2.5 Kw Antenna Coupler
(PRODUCT ON ORDER)
AT-4-K - 2.5 Kw Antenna Coupler
Power: 2500W single continuous tone.
Symmetrical/asymmetric output (switch on the front panel).
High power balun at the tuner circuit input.
T match circuit: range adjustment impedance from 8o to 2000o
Maximum capacity (460pf) by 6kV variable capacitors.
Silver ceramic cylindrical inductor powered by crank.
Ferrite entrance balun 1:1
Peak meter and peak maintenance (1- 2 sec) with backlit cross-needle instrument (supplied with wall transformer)
Powder-painted front panel and top cover.
Dimensions: 11.8 x 38 x 40.5 cm (approx.)
Weight: 9 Kg. (approx.)
