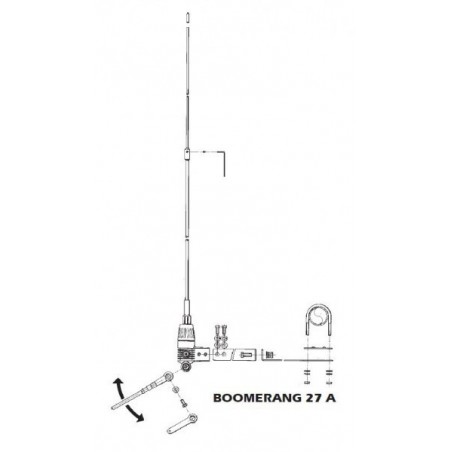

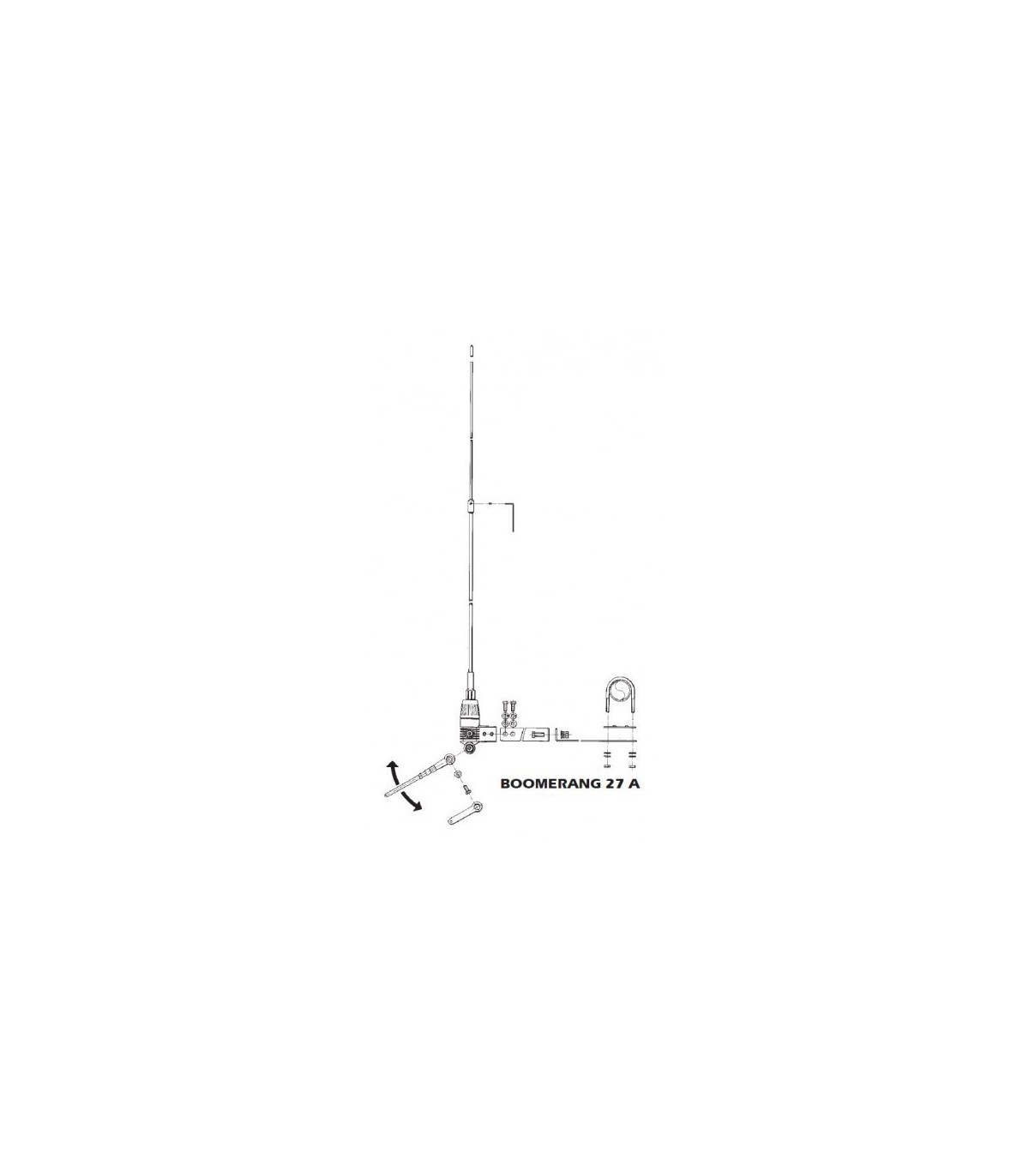

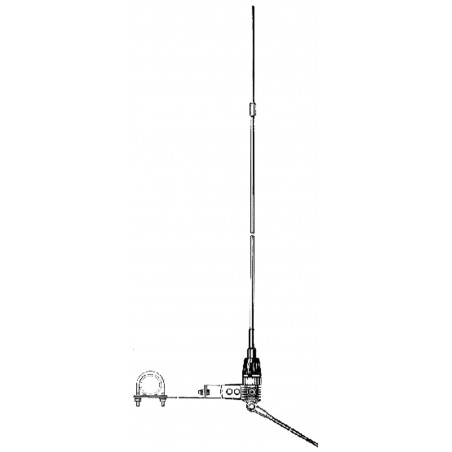

BOOMERNAG 27 A SIRIO antenna

Features:

• Adjustable 10m & CB 11mts.
• Band monkey.
• Omnidirectional.
• Adjustment mark in the center of the band.
• Possibility to vary the adjustment in radiant element.
• Load coil at the base.

Electrical data:

• Type: 1/4 wave - boomerang.
• Frequency range: 27-28.5 MHz.
• Impedance 50 Ohm unbalanced.
• Radiation (horizontal plane): 360o omnidirectional.
• Polarization: vertical.
• Gain: 0 dBd, 2.15 dBi.
• Bandwidth for S.W.R. 2:1:
• S.W.R. for 900 KHz res. 1.2:1.
• Maximum recommended power: 200W - 600WCW.

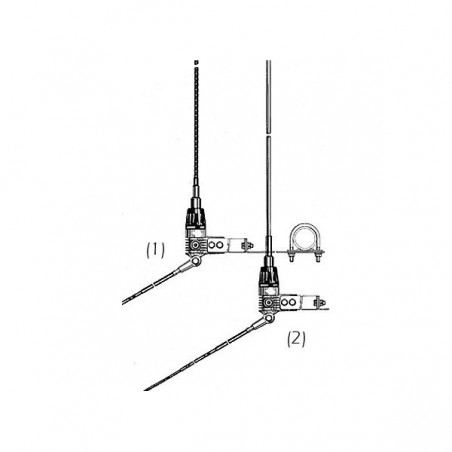

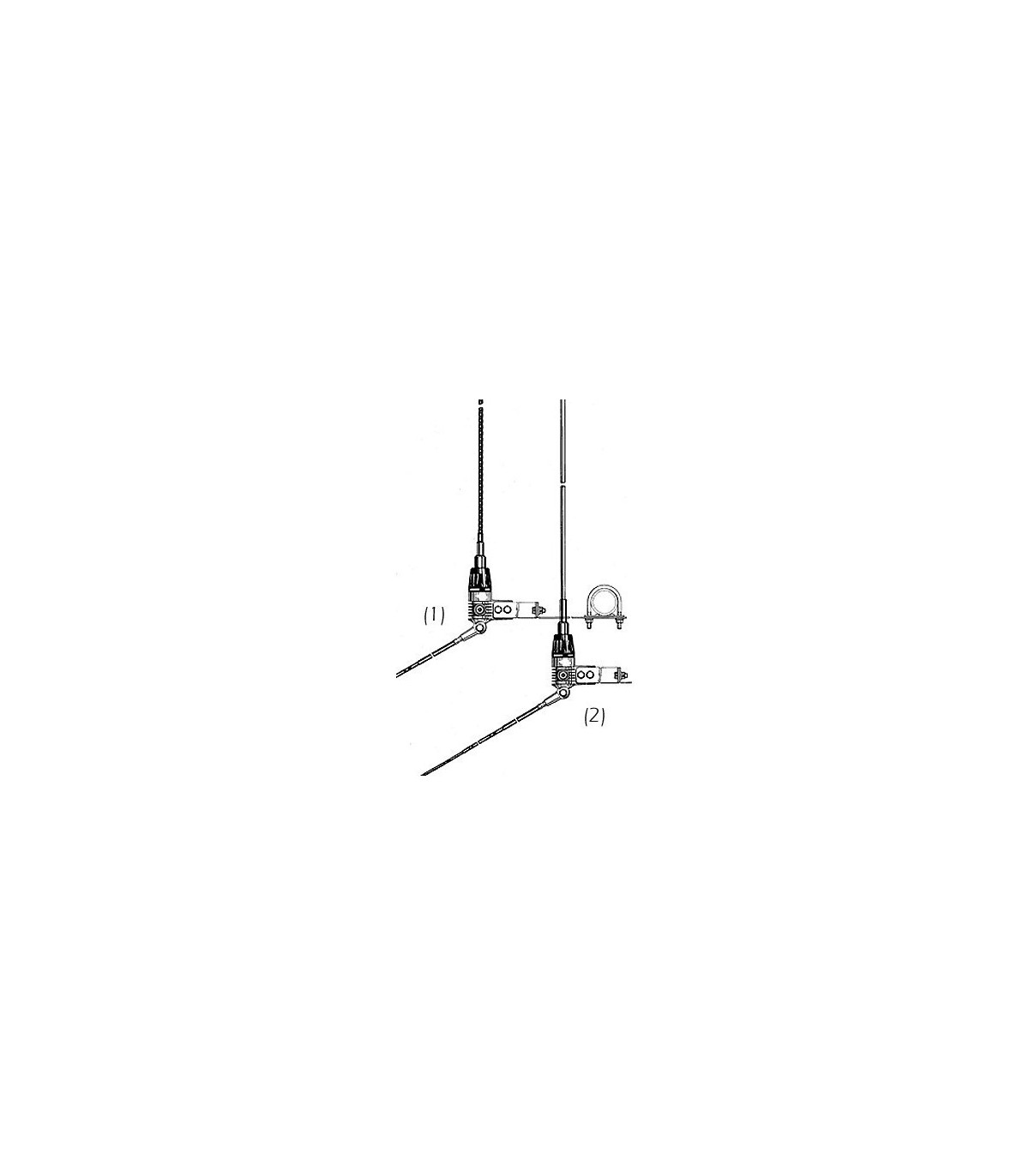

• Fixing: Clamped arm.
• Connector: UHF-female.

Mechanical Data:

• Wind load: 33 N at 150 Km/h.
• Wind resistance: 140 km/h.
• Resistance area: 0.03 m2.
• Length (approx.): 3420 mm.
• Weight (approx.): 880 gr.
• Radial length (approx.): 1130 mm.
• Materials: Aluminum, Steel, Nylon, Fiber & Copper.
