| Multiprotocol digital radio: designed to work under the digital NXDN or DMR protocol and analog FM |
| NXDN Conventional and Trunk Type-C or Gen2 |
| DMR Level II and site roaming |
| Mixed analog digital and FM operation allows gradual migration at your convenience |

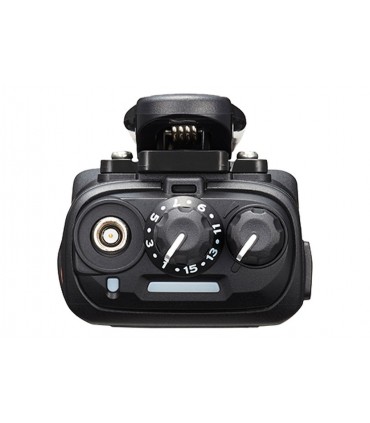

| 7-color light bar indicator on the top panel |
| Built-in GPS receiver / antenna for effective fleet management |
| Built-in Bluetooth for hands-free communication - Available Bluetooth profiles: HSP (Headphone Profile) and SPP (Serial Port Profile - available as an option) |
| The renowned audio quality KENWOOD can be achieved thanks to the active noise reduction (ANR) of its integrated DSP |
| DES and AES encryption software in NXDN Conventional / Trunk and DMR Conventional protocols |
| Built-in motion sensor (Man down, stationary and motion detection) |
| IP54 / 55/67 and MIL-STD-810 C / D / E / F / G |
| 4-line display (2 main / sub-LCD lines, icon and key guide) / 14 characters |
| 5 line text message display (3 lines of text, icon and key guide) |
| 4-way (D-pad) key for intuitive control and operation |
| Belt clip | Yes |
| Manual | Yes |
| Fixing screw | Yes |
| Full details of NEXEDGE functions from your dealer KENWOOD | Yes |
| Call to all groups | Yes |
| AMBE + 2 Vocoder | Yes |
| General Call (Trunk Mode) | Yes |
| Emergency call | Yes |
| Degraded mode | Yes |
| Group Call (Trunk Mode) | Yes |
| Private Individual Call (Trunk Mode) | Yes |
| Individual call | Yes |
| Trunk Mode Messaging | Yes |
| NXDN Conventional included | Yes |
| Channel Spacing NXDN Digital 12.5 / 6.25kHz | Yes |
| NXDN encryption included | Yes |
| Alias Via-el-aire | Yes |
| Alert call | Yes |
| Priority monitor IDs | Yes |
| Radio Access Number (RAN) | Yes |
| Remote Group Inclusion (Trunk Mode) | Yes |
| Remote monitoring | Yes |
| Remote lock / unlock | Yes |
| Short and long data messages | Yes |
| Status messages | Yes |
| Trunk transmission mode | Yes |
| Zones | 128 |
| AMBE + 2 Vocoder | Yes |
| Direct Mode (P2P) | Yes |
| DMR Tier II | Yes |
| DMR Site Roaming | Yes |
| DMR Auto Slot Select | Yes |
| Individual call with confirmation | Yes |
| Single Slot Data Synchronization | Yes |
| 2-slot TDMA architecture | Yes |
| Choice of optional battery packs | Yes |
| Variety of optional microphones | Yes |
| Internal encryption unit | Yes |
| For use in the EU | Yes |
| IP54 | Yes |
| IP55 | Yes |
| IP67 | Yes |
| MIL-STD 810 C / D / E / F / G | Yes |
| Frequency range | 400 - 520 MHz |
| Number of channels | 260 |
| Number of Zones | 128 |
| Channel Spacing - Analog - Wide / Medium / Narrow | 25 kHz / 20 kHz / 12.5 kHz |
| Modulation Limiting - Analogue | ± 5.0 kHz to 25 kHz ± 4.0 kHz to 20 kHz ± 2.5 kHz to 12.5 kHz |
| Channel Spacing - Digital - Wide / Narrow | 12.5 kHz / 6.25 kHz |
| Battery life | With KNB-55L: ± 8 h (FDMA) / ± 9.5 h (TDMA) With KNB-56N: ± 8 h (FDMA) / ± 9.0 h (TDMA) With KNB-57L: ± 11 h (FDMA ) / ± 13.5 h (TDMA) - 5-5-90 - |
| Frequency Tolerance | ± 1 ppm (-30 ° C to + 60 ° C) |
| Operating temperature | -30 ° C to + 60 ° C |
| Operating voltage | 7.5 V DC ± 20% |
| Dimensions | With KNB-55L: 56.0 x 119.6 x 36.4 mm With KNB-56N: 56.0 x 119.6 x 42.7 mm With KNB-57L: 56.0 x 119.6 x 39.0 mm Radius only: 56.0 x 119.6 x 36.4 mm - Projections not included - |
| Net weight) | With KNB-55L: 315 g With KNB-56N: 410 g With KNB-57L: 340 g Radio only: 220 g |
| Audio output power | 3% Distortion: 500 mW / 8 Ohms 5% Distortion: 1000 mW / 8 Ohms - Internal speaker - |
| Intermodulation | Wide / Med / Narrow: 65 dB |
| Selectivity (Analog) | 12.5 kHz: 68 dB 20 kHz: 74 dB 25 kHz: 76 dB |
| Sensitivity (Analog) - EIA 12 dB SINAD | 0.25 µV (12.5 / 20/25 kHz) |
| Sensitivity (Analog) - IN 20 dB SINAD | 12.5 kHz: -1 db µV (0.45 µV) 20 kHz: -3 db µV (0.35 µV) 25 kHz: -3 db µV (0.35 µV) |
| Sensitivity (Digital) | NXDN: 12.5 kHz = 0.25 µV at 3% BER NXDN: 6.25 kHz = 0.20 µV at 3% BER NXDN: 12.5 kHz = -1 dB µV (0.45 µV) at 1% BER NXDN: 6.25 kHz = -4 dB µV (0.32 µV) at 1% BER DMR: 12.5 kHz = -4.5 dB µV (0.30 µV) at 5% BER DMR: 12.5 kHz = -1 dB µV (0.45 µV) at 1% BER |
| Spurious Response Rejection | 65 dB |
| Radio Frequency Output Power | 5 W / 4 W / 1 W |
| Audio distortion | 3 % |
| FM residual noise | Analog @ 25 kHz: 45 dB Analog @ 20 kHz: 45 dB Analog @ 12.5 kHz: 40 dB |
| Spurious emission (EN) | -36 dBm ≤ 1 GHz -30 dBm> 1 GHz |
