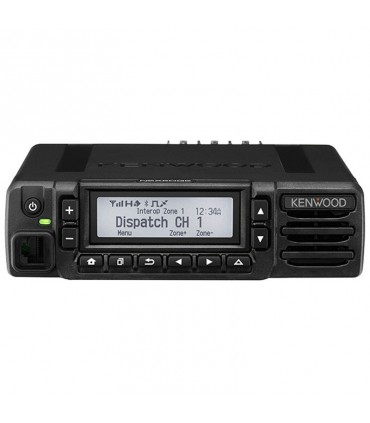

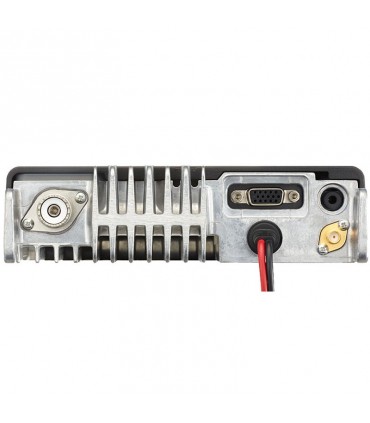

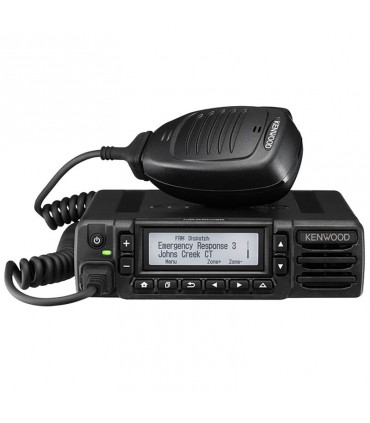

NX-3720/3820 Mobile Transceiver PMR Analog-Digital NEXEDGE-DMR VHF/UHF

NX-3720/3820
NEXEDGE-DMR VHF/UHF Analog-Digital PMR Mobile Transceiver

(SERVED ON REQUEST)

Read more
€620.00 (tax incl.)
Last items in stock 1 Item
Reference:
Love0
Add to wishlist
Related products
Description

NX-3720/3820
NEXEDGE-DMR VHF / UHF Mobile PMR Analog-Digital Transceiver

NX-3720E

VHF NEXEDGE / DMR / Analog Mobile Transceiver

NX-3820E

UHF NEXEDGE / DMR / Analog Mobile Transceiver

** NX-3720GE / NX-3820GE

VHF NEXEDGE / DMR / Analog Mobile Transceiver with GPS / Bluetooth

Outstanding Features

Multiprotocol digital radio - designed to work under digital NXDN or DMR protocol and analog FM.
NXDN Conventional and Trunk Type-C or Gen2
DMR Level II 1 Site Roaming
Mixed analog digital and FM operation allows gradual migration at your convenience
4-line display (2 main / sub-LCD lines, icon and key guide) / 14 characters
5 line text message display (3 lines of text, icon and key guide)
7-color LED indicator
External and internal speaker connection
Renowned KENWOOD audio quality can be achieved thanks to Active Noise Reduction (ANR) utilized by its DSP
DES and AES encryption software in NXDN Conventional / Trunk and DMR Conventional protocols
MIL-STD-810 C / D / E / F / G

Supplied accessories

DC cable Yes
Fuse Yes
Manual Yes
Mounting bracket Yes
Fixing screw Yes


CHARACTERISTICS PMR NEXEDGE

Full details of NEXEDGE functions from your dealer KENWOOD Yes
Call to all groups Yes
AMBE + 2 Vocoder Yes
General Call (Trunk Mode) Yes
Emergency call Yes
Degraded mode Yes
Group Call (Trunk Mode) Yes
Private Individual Call (Trunk Mode) Yes
Individual call Yes
Trunk Mode Messaging Yes
NXDN Conventional included Yes
Channel Spacing NXDN Digital 12.5 / 6.25kHz Yes
NXDN encryption included Yes
Alias Via-el-aire Yes
Alert call Yes
Priority monitor IDs Yes
Radio Access Number (RAN) Yes
Remote Group Inclusion (Trunk Mode) Yes
Remote monitoring Yes
Remote lock / unlock Yes
Short and long data messages Yes
Status messages Yes
Trunk transmission mode Yes
Zones 128

DMR Features

AMBE + 2 Vocoder Yes
Direct Mode (P2P) Yes
DMR Tier II Yes
DMR Site Roaming Yes
DMR Auto Slot Select Yes
Individual call with confirmation Yes
Single Slot Data Synchronization Yes
2-slot TDMA architecture Yes

Choices

Variety of optional microphones Yes
Internal encryption unit Yes
Micro speaker with programmable control, with MIL-SPEC standard Yes
Horn / PA Alert Yes
Remote Control Head Yes, - planned for the end of 2017

Applicable standards

For use in the EU Yes
IP54 Yes
MIL-STD 810 C / D / E / F / G Yes

Technical specifications

Frequency range 400 - 470 MHz
Number of channels 512
Number of Zones 128
Channel Spacing - Analog - Wide / Medium / Narrow 25 kHz / 20 kHz / 12.5 kHz
Modulation Limiting - Analogue ± 5.0 kHz to 25 kHz ± 4.0 kHz to 20 kHz ± 2.5 kHz to 12.5 kHz
Channel Spacing - Digital - Wide / Narrow 12.5 kHz / 6.25 kHz
Consumption Standby: 0.45 A Receive: 2.3 A Transmit: 9.0 A
Frequency Tolerance ± 1 ppm (-30 ° C to + 60 ° C)
Operating temperature -30 ° C to + 60 ° C
Energy supply 13.2 V DC (10.8 - 15.6 V DC)
Dimensions W x H x D: 160 x 43 x 160 mm - Radius with control head, projections not included -
Net weight) 1.2 kg - Radio with control head -

Receiver Specifications

Audio output power 4 Watt / 4 Ohm
Intermodulation 70 dB
Selectivity (Analog) 12.5 kHz: 68 dB 20 kHz: 76 dB 25 kHz: 78 dB
Sensitivity (Analog) - EIA 12 dB SINAD 0.25 µV (12.5 / 20/25 kHz)
Sensitivity (Analog) - IN 20 dB SINAD 12.5 kHz: -1 db µV (0.45 µV) 20 kHz: -3 db µV (0.35 µV) 25 kHz: -3 db µV (0.35 µV)
Sensitivity (Digital) NXDN: 12.5 kHz = 0.28 µV at 3% BER NXDN: 6.25 kHz = 0.20 µV at 3% BER NXDN: 12.5 kHz = -2 dB µV (0.40 µV) at 1% BER NXDN: 6.25 kHz = -5 dB µV (0.28 µV) at 1% BER DMR: 12.5 kHz = -4.5 dB µV (0.30 µV) at 5% BER DMR: 12.5 kHz = -2 dB µV (0.40 µV) at 1% BER
Spurious response rejection 80 dB

Transmitter Specifications

Radio Frequency Output Power 25 W / 5 W
Audio distortion two %
FM residual noise Analog @ 25 kHz: 50 dB Analog @ 20 kHz: 50 dB Analog @ 12.5 kHz: 45 dB
Spurious emission (EN)

-36 dBm ≤ 1 GHz -30 dBm> 1 GHZ
