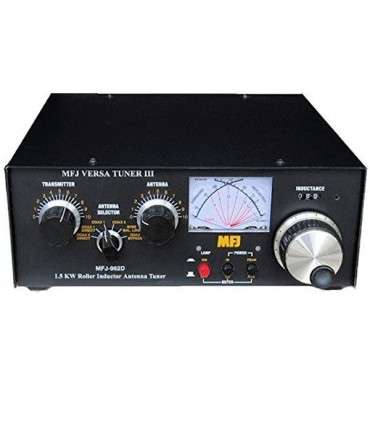

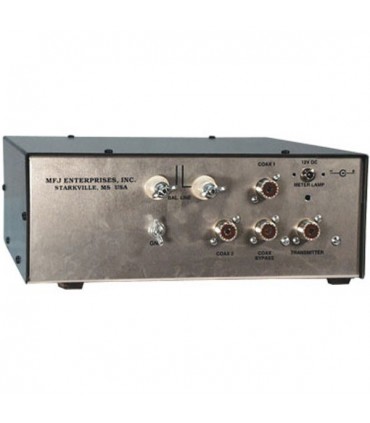

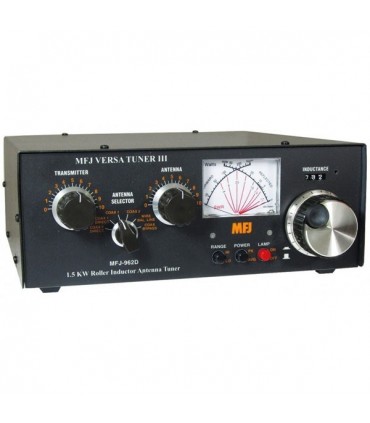

Coupler - MFJ-962D

MFJ-962D, manual coupler with SWR meter for HF, from 1.8 to 30 MHz. Supports up to 1500w.

Read more
€334.71

Financia tu compra

cuotas
€60.79 / mes en 6 cuotas
PRODUCT AVAILABLE IN OCTOBER
Reference:
Love0
Add to wishlist
Related products
No items
Description

The MFJ962D coupler is suitable for amplifiers up to 1000 W input (800W RF PEP) is ideal as a complement to ameritron AL811x and AL811Hx amplifiers, thanks to its variable coil allows optimal adaptation over a wide margin of impedances. The wattmeter (2000/500W) indicates the average or peak power. The instrument is illuminated for easy reading (the lamp is powered at 12V). With this coupler it is possible to tune in to coaxial cable-powered antennas or parallel lines, vertical, directional, dipole, reverse V antennas.

Sheet

HF Band
Dimensions 27.3 x 27.6 x 10.2cm
Impedance 50 Ohm
Weight 3.35 kg
Maximum Power 1500 w. (PEP)
Frequency Range 1.8 - 30 MHz
Type of Manual Coupler
