RT-100 + RC-100 LDG

to 125 watts on SSB and CW. The RT-100 is weather resistant, and is powered over the coaxial cable via the included RC-100 remote controller/Bias-T.

The RT-100 will automatically tune when the SWR exceeds a preset limit. You can also manually begin a tuning cycle or bypass the tuner from the RT-100 remote. DC power for the tuner is applied to the RT-100 near the operating position and transferred to the tuner over the coax.

• 0.1 to 125 watt power range (SSB and CW), 30 watt digital.
• 2000 memories for instantaneous band changing.
• Powered over the coax. Weather resistant ABS Enclosure with Gaskets. -40 to +70C.
• Tuning time: 0.1 to 6 seconds full tune, 0.1 seconds memory tune.
• 1.8 to 54.0 MHz coverage. Built-in frequency sensor.
• Tunes 4 to 800 ohm loads (16 to 150 on 6M), 16 to 3200 ohms with optional 4:1 Balun.For Dipoles, Verticals, Vs, Beams or any Coax Fed Antenna.

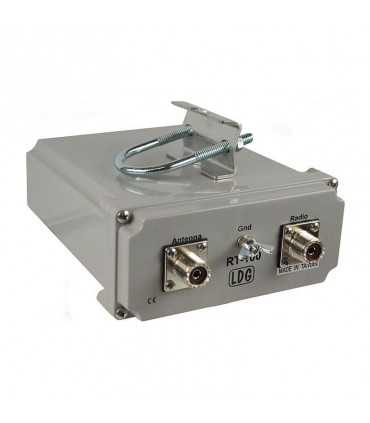

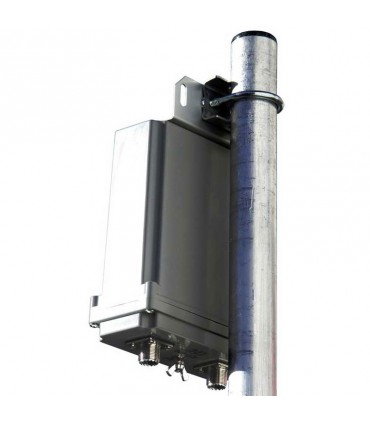

• Includes U-bolt for pipe mounting.

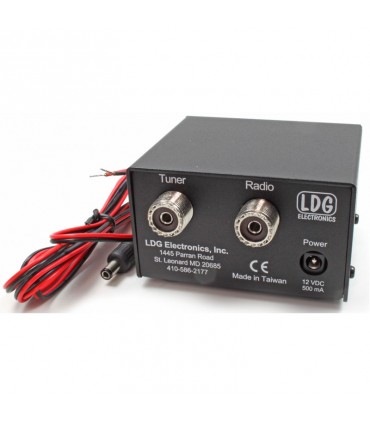

• Includes RC-100 Controller providing power and control to tuner.
• Optional external Balun allows tuning of random length, long wire or ladder line fed antennas.
• Small Size: 6.5″ L x 6.0″ W x 2.5″ H
• Weight: 1 pounds
