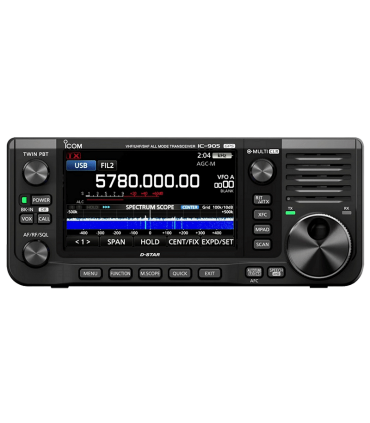

VHF/UHF/SHF digital and analog amateur radio base IC-905, all modes coverage: 144/430/1200MHz (10W), 2400/5600MHz (2W) and 10GHz (0.5W) with CX-10G (optional).
All modes: SSB, CW, AM, FM, D-STAR (DV/DD), FM ATV (analogue) and RTTY.
RF module with antenna separate from the controller, 4.3" TFT colour LCD touch screen, real-time spectrum viewer, Waterfall, PoE power supply (Ethernet cable) between RF module and controller, microSD port and USB-C.
- All-mode VHF/UHF/SHF transceiver: 144 / 430 / 1200 MHz (10W transmit power), 2400 / 5600 MHz (2W) and 10 GHz (0.5W) with optional CX-10G converter
- RF unit separate from the controller and mounted under the antenna (limits power losses)
- SSB, CW, AM, FM, D-STAR (DV/DD) and FM ATV (analogue) modes
- 4.3" colour touch screen
- High GNSS OCXO frequency stability +/- 0.065ppm
- Real-time spectrometer and waterfall
- 2.4 / 5.6 / 10GHz collinear ominidirectional antennas (optional)
- 10GHz directional parabolic antenna (optional)
- POE power supply for RF unit (cable supplied)
- 144/430/1200MHz antenna connector: N female
- Antenna connector 2400 MHz and 5600 MHz: SMA female
- GPS antenna connector: SMA female
