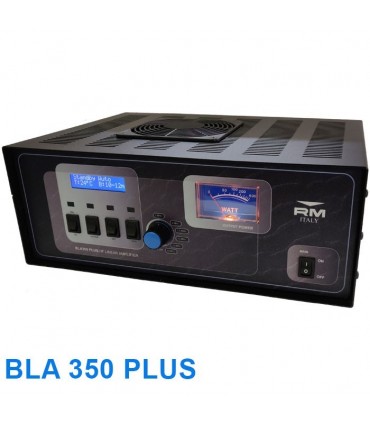

RM BLA-350 Plus amplifier for HF 300 W
(product on request)
RM BLA-350 amplifier for HF. 300 W. 230 V. Built-in power supply.
The new BLA350 Plus features new hardware ROS protection that ensures quick protection against excessive ROS conditions.
Frequencies: 1.5 to 30 MHz.
Built-in 800VA power supply: 110 or 230/240 VAC.

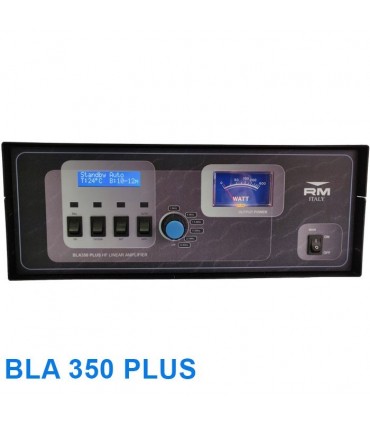

LCD display showing the operating status of the amplifier and user-adjustable parameters.
6 low pass filters (cutting frequencies 2.4, 7.5, 15, 22 and 30 MHz). Automatic or manual filter selection.
Input power: 1-12 W
Output power: 250-300W
Instant band switching output, no adjustment, no heating.
SWR protection.
2x MACOM MRF150 RF Power FET
Fan speed regulated by temperature sensors.
Fuse: 4 A.
Dimensions: 358 x 270 x 160 mm.
Weight 13 Kg.
