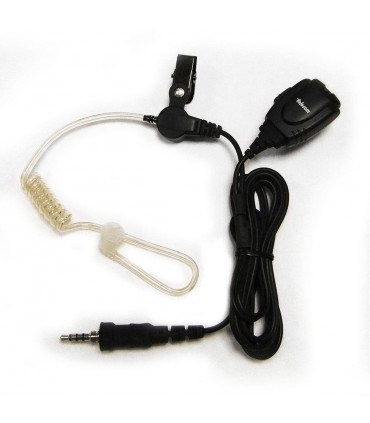

JD-MAT-VX-7 - Micro-headphone

Micro-acoustic earphone tubular type. Smooth black cable. IP-54
For: YAESU VX-6, VX-7, etc. For ALINCO DJ-S17, DJ-S47. For STANDARD HORIZON HX-290, HX-370, etc.

Silicone finish that prevents background noise. Ideal for noisy environments.
Acoustic tube of similar skin color (easy to hide).
Water resistant (IP54 standard).

Microphone size : 34 x 25 x 27 mm.

Handset
Diameter: 15mm
Output level: 100 dB; 0.05W; 0.01m (Artificial earmuff IEC-318)
Input power: 0.1W
Maximum input power: 0.2W
Output impedance: 32o

Microphone
Element type: non-directional electrical capacitor.
Sensitivity: -58dBi
Output impedance: 2K

Supports:

YAESU/VERTEX STANDARD

FT-Series: FT-270, FT-277
VX Series: VX-6, VX-7, VX-120, VX-127, VX-170, VX-177, VX-460, VX-710, VX-1770, VXA-220, VXA-300, VXA-700, VXA-710

STANDARD HORIZON

HX Series: HX-290, HX-370, HX-370SAS, HX-371, HX-400, HX-471, HX-751, HX-851

ALINCO

DJ Series: DJ-S17, DJ-S47
