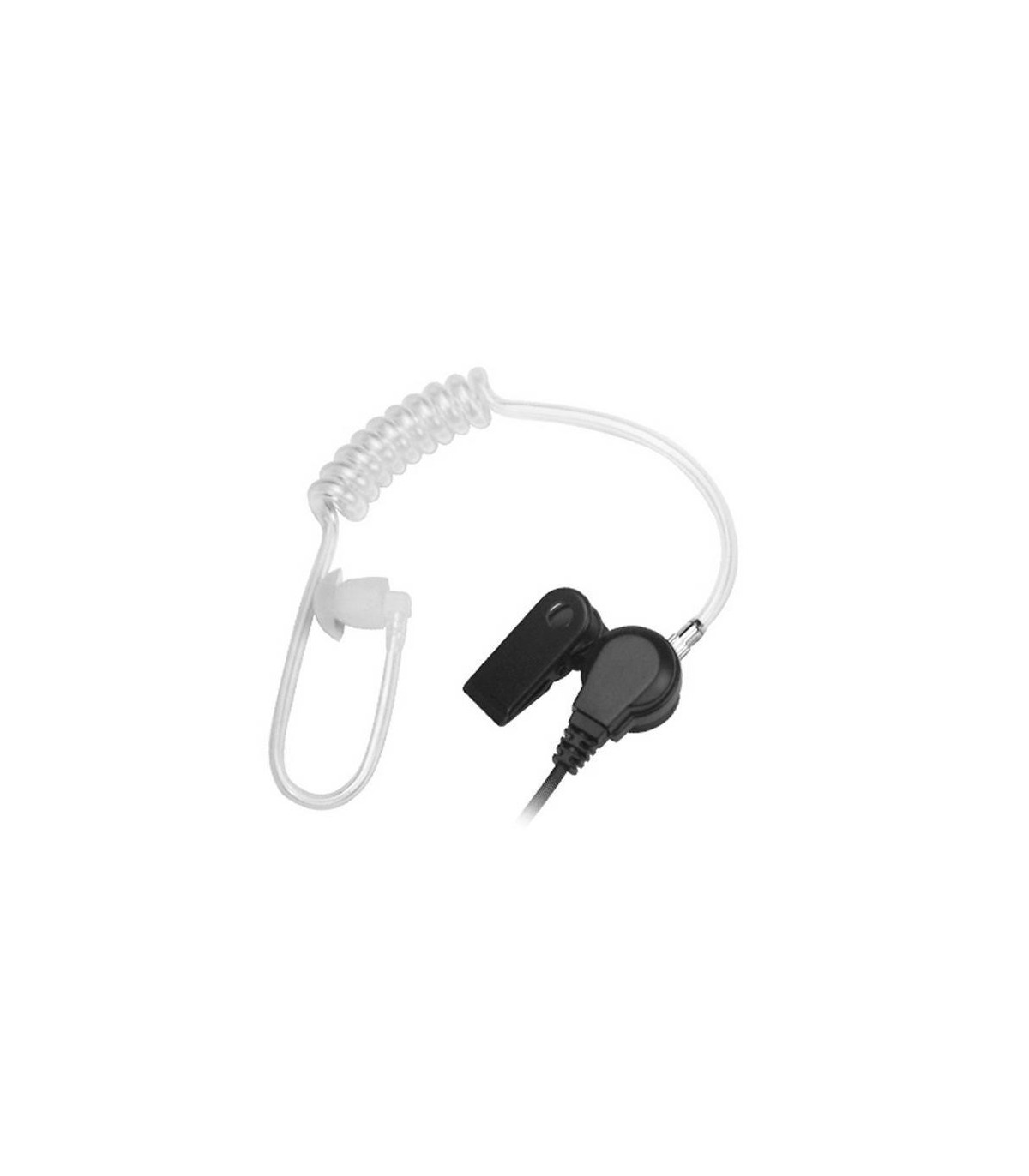

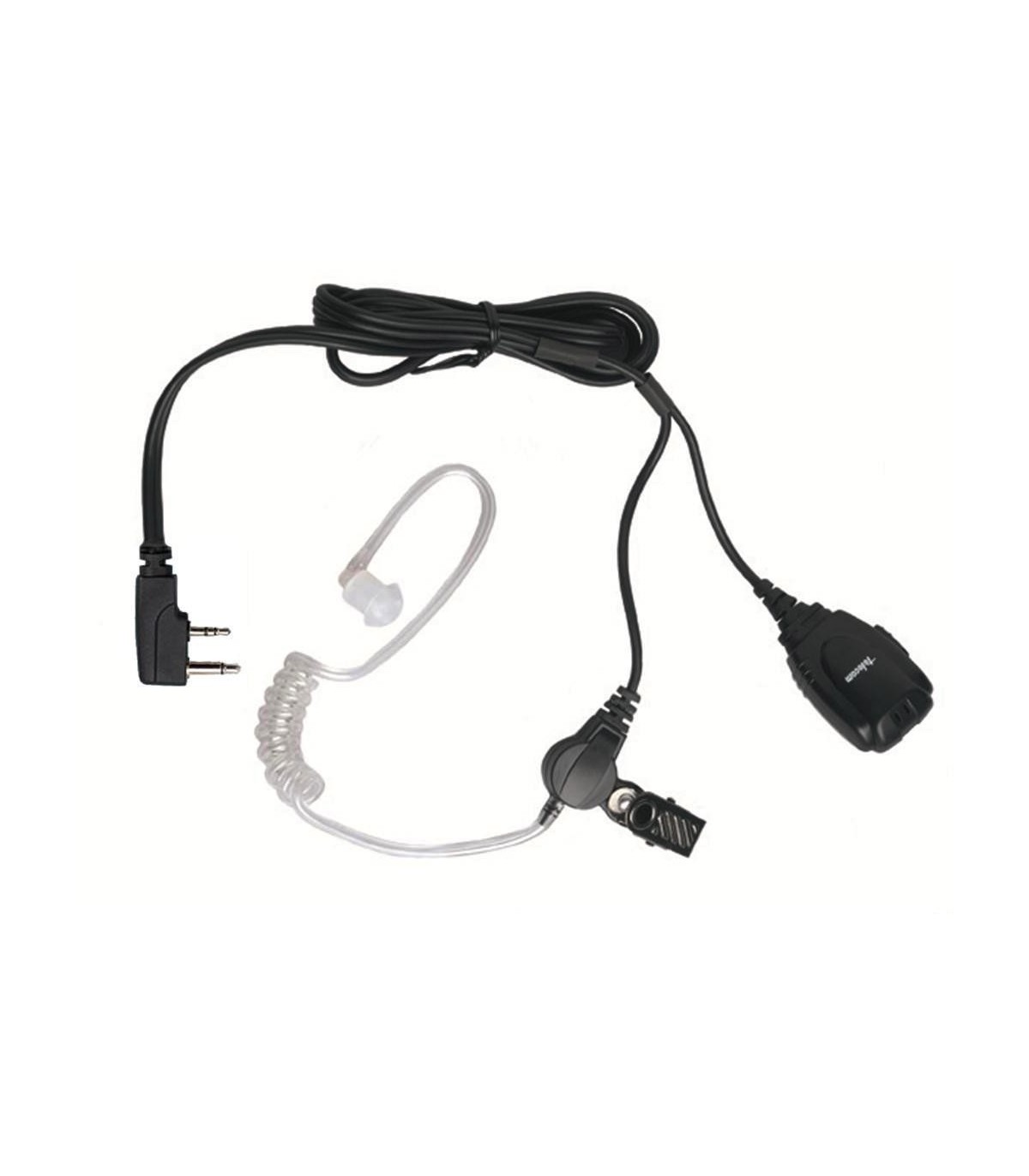

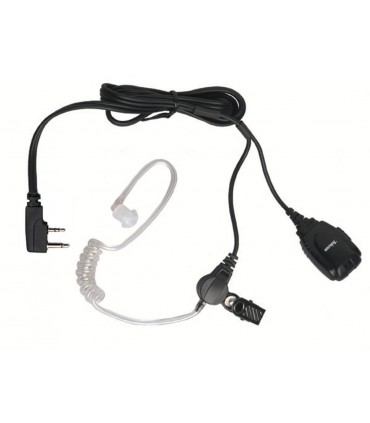

JD-MAT-IL - Micro-earphone

Micro-acoustic earphone tubular type. IP-54. Smooth black cable.
For ICOM IC-F3G, IC-F3GS, IC-F4G, etc.

Silicone finish that prevents background noise. Ideal for noisy environments.
Acoustic tube of similar skin color (easy to hide).
Water resistant (IP54 standard).

Microphone size : 34 x 25 x 27 mm.

Handset
Diameter: 15mm
Output level: 100 dB; 0.05W; 0.01m (Artificial earmuff IEC-318)
Input power: 0.1W
Maximum input power: 0.2W
Output impedance: 32o

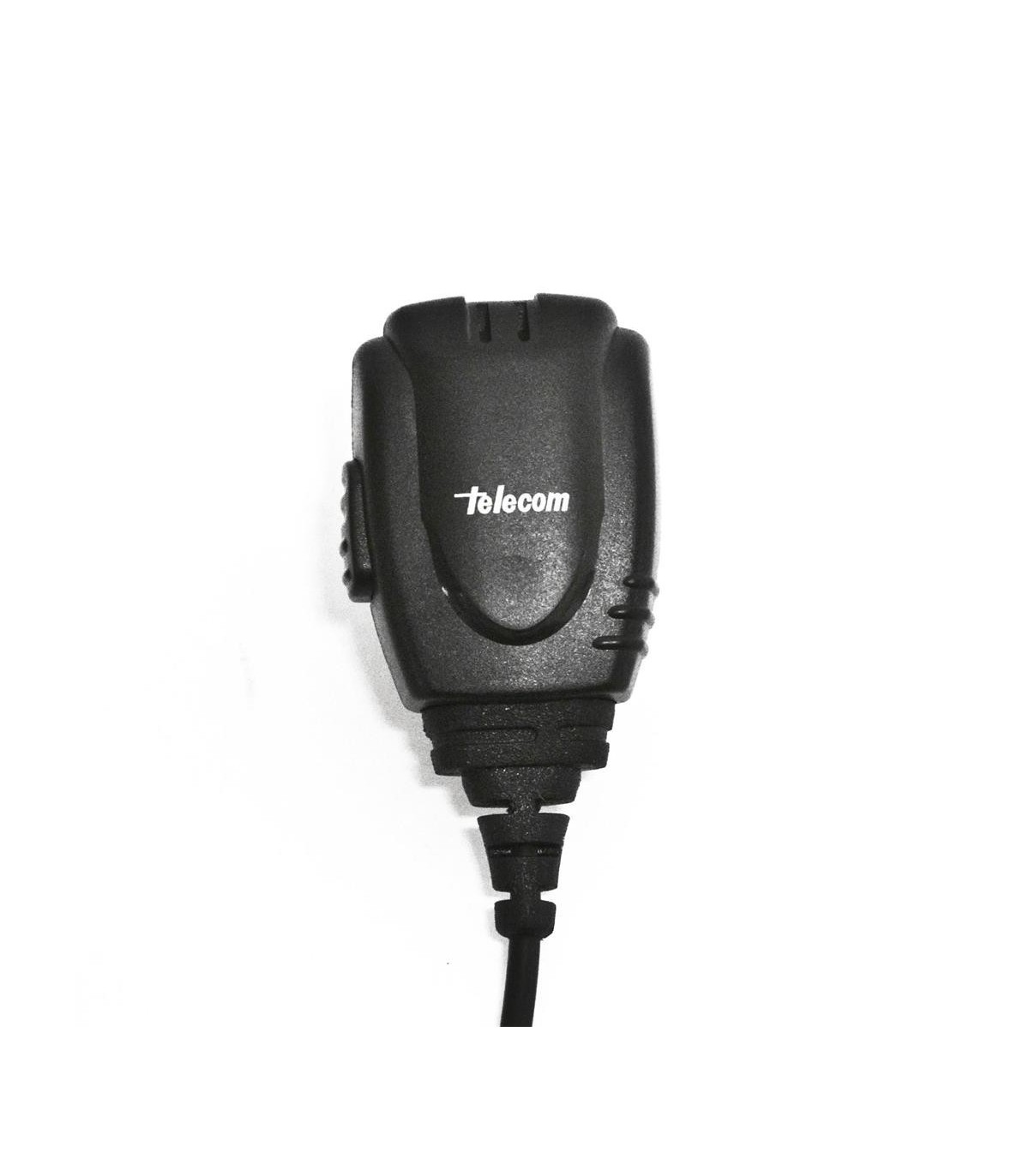

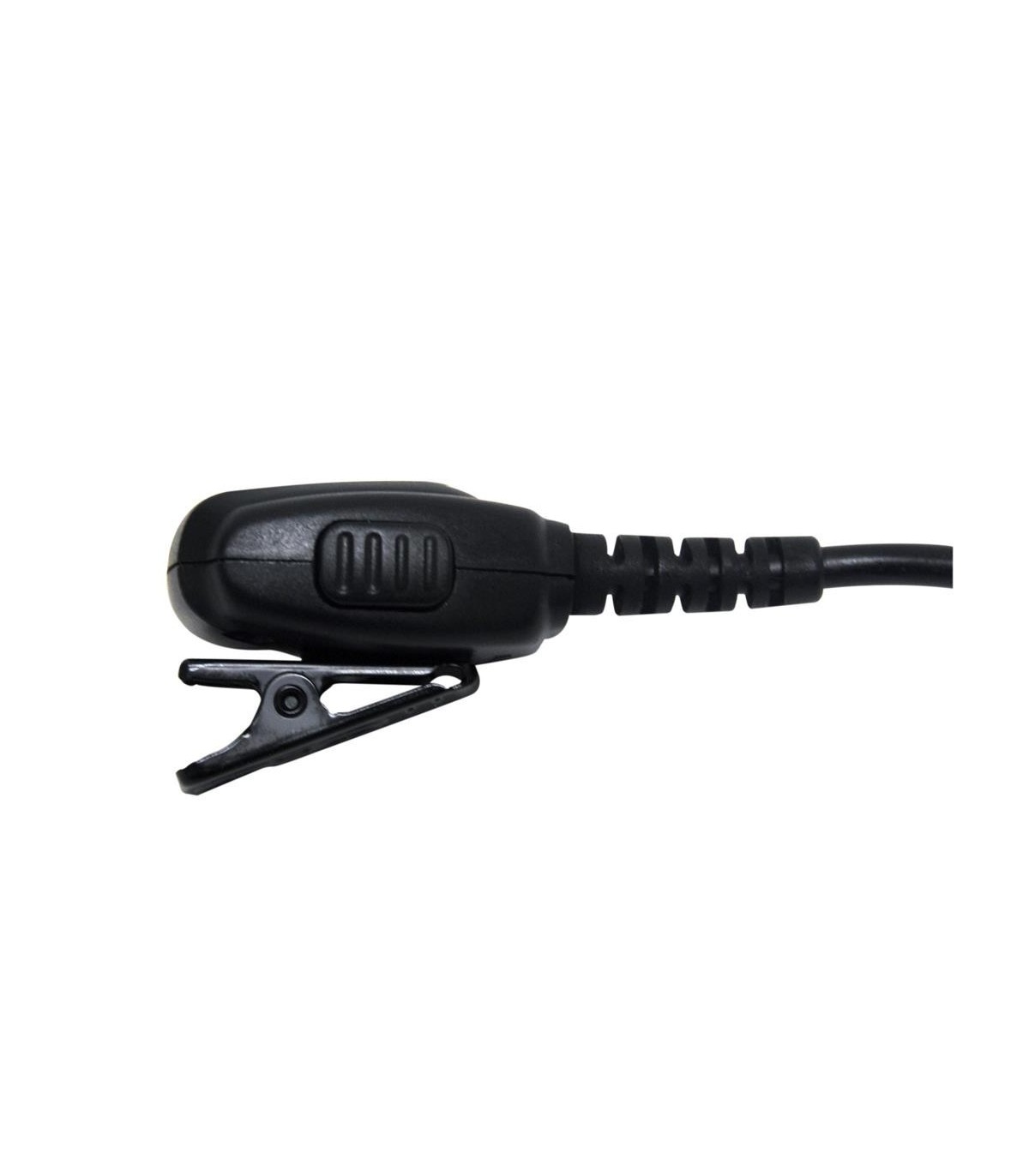

Microphone
Element type: non-directional electrical capacitor.
Sensitivity: -58dBi
Output impedance: 2K

Supports:

ICOM

IC Series: IC-F3G, IC-F3GS, IC-G3GT, IC-F4G, IC-F4GS, IC-F4GT, IC-F43GS, IC-F43GT, IC-F43TR, IC-F11, IC-F11S, IC-F14, IC-F14S, IC-F15, IC-F21, IC-F21S, IC-F22, IC-F24, IC-F24S, IC-F31, IC-F33, IC-F43, BC100, IC-F3001, IC-F3011, IC-F3021, IC-F3021S, IC-F3021T, IC-F4001, IC-F4011, IC-F4021, IC-F4021S, IC-F4021T, IC-V8
