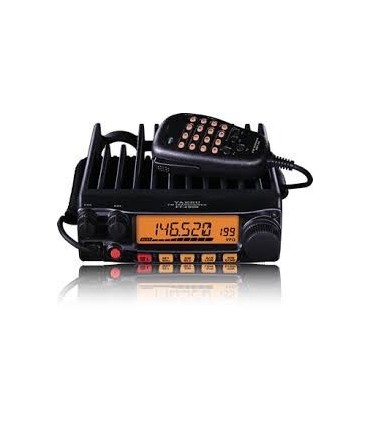

YAESU FT-2900E
CHECK PRICE AND AVAILABILITY
YAESU FT-2980E
The YAESU FT-2980E is quiet and powerful.

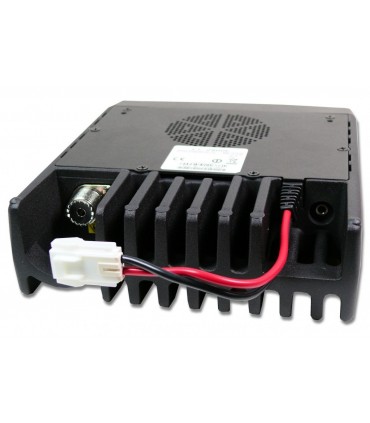

Rugged military standard 810 MIL-STD construction. No fan required thanks to the chassis / heatsink design. Ergonomics are unsurpassed for the safety of mobile use. It has four power levels: 75, 30, 10 and 5 watts. The backlit display has four levels of illumination.
| GENERAL | |
|
Receive frequency range:
|
136-174 MHz. |
|
Transmission frequency range:
|
144-146 MHz |
|
Channel steps:
|
5/10 / 12.5 / 15/20/25/50/100 kHz |
|
Frequency stability:
|
Better than ± 10 ppm (-20 ° C to + 60 ° C) |
|
Emission mode:
|
F2D, F3E |
|
Antenna impedance:
|
50 Ohm, unbalanced |
|
Temporal scope:
|
-4 ° to + 140 ° F (-20 ° C to + 60 ° C) |
|
Feeding:
|
DC 13.8V ± 10%, Negative Ground |
|
Current consumption (normal):
|
0 |
|
RX:
|
Less than 0.7A (max audio) |
|
0
|
Less than 0.3A (Squelched) |
|
TX:
|
15A (75 W) / 9 BIS (30W) / 5A (10W) / 4A (5W) |
|
Operating temperature range:
|
-20 ° C to + 60 ° C (-4 ° F to + 140 ° F) |
|
Size case:
|
6.3 x 2.0 7.3 x (without handles) |
|
0
|
160 (W) x 50 (H) x 185 (D) mm |
|
Weight:
|
4.2 kg (1.9 kg) |
|
0
|
|
| TRANSMITTER | |
|
RF energy output:
|
75/30/10/5 watts. |
|
Modulation type:
|
Variable reactance |
|
Maximum deviation:
|
± 5 kHz / ± 2.5 kHz |
|
False radiation:
|
Better than - 60dB |
|
Microphone impedance:
|
2K Ohm |
|
0
|
|
| RECEIVER | |
|
Circuit type:
|
Superheterodyne double-conversion |
|
Intermediate frequencies:
|
21.7 MHz and 450 kHz |
|
Sensitivity (12dB SINAD):
|
Better than 0.4uV |
|
Wide Selectivity: (-6 / -60 dB):
|
kHz 12 to 28 kHz |
|
Narrow Selectivity: (-6 / -60 dB):
|
9 kHz / 22 kHz. |
|
IF reject:
|
Better than 70 dB |
|
Image rejection:
|
Better than 70 dB |
|
Maximum output AF:
|
3 W into 4 ohm @ 10% THD |
