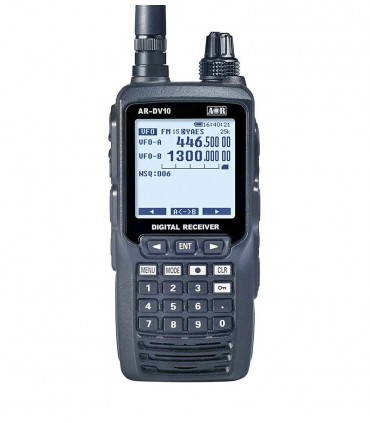

AOR AR-DV10

The AR-DV10 SDR gives the operator the ability to monitor and receive a wide variety of analog and digital frequencies.

The AR-DV10 SDR is one of the most complete portable receivers on the market, thanks to its “digital automatic” mode the receiver is able to recognize analog or digital signals and automatically switch to the appropriate mode. We can also choose the modes manually.

Characteristics:

• Broadband receiver 100 Khz to 1300 Mhz
• Multimode digital demodulation with automatic detection except for Tetra.
• Analog reception in all modes: AM, FM (wide and narrow), USB, LSB, CW.
• 2000 Memories
• Memory banks: 40
• Search Banks: 40
• Priority channel: 1
• Frequency steps: 50 per bank or VFO
• Fast memory scanner
• Alphanumeric memory channels
• Micro-USB card (audio recording, memory data input and output, software update)
• Easy firmware upgrade by downloading from SDHC memory card
• Digital modes: TETRA (no encryption), DMR (tier 1 and 2 no encryption), Mototrbo, NXDN (6.25k), dPMR (446 Tier 1), APCO25 (phase 1),D-STAR, Yaesu Fusion (C4DFM), Alinco (EJ47U), Japanese D-CR.
• Analog modes: WFM, NFM, AM, USB, LSB, CW
• Operating modes: VFO, memory channels, search and scanner programs
• Frequency jumps in analog mode: 100 kHz, 30 kHz, 15 kHz, 8 kHz, 6 kHz, 5.5 kHz, 3.8 kHz, 2.6 kHz, 1.8 kHz, 500 Hz, 200Hz. (jump selection depends on mode)
• Frequency hopping digital mode: 6 kHz, 15 kHz. 30 kHz (auto-select)
• Noise reduction
• AGC: Rotate the dial knob to set automatic gain control to FAST, MID, SLOW
• Voice scrambler
• Antenna connector: BNC
• Memory management in CSV format
• Water resistance level IPX5 (with antenna, battery, belt clip and all the rubber of the connectors perfectly closed)
• Dimensions: 65mm wide x 137mm high x 41mm deep (without projections)
• Weight: 420 g. approx. (with battery, belt clip and antenna included)
• Signal attenuator: approx 10db ON / OFF
• It has 3 VFOs (A-B-Z)
• Management of priority channels

The pack includes:

• 1 AOR AR-DV10
• 1 battery holder
• 1 lithium battery with 7.4V and 2000 mAh
• 1 power supply with 12 VDC cigarette lighter socket
• 1 desktop charger with power supply and charging tub
• 1 rubber antenna
• 1 telescopic antenna
• 1 8GB micro SD card
• 1 instruction manual in English.
