BT-1500-A - Acoplador de antena PALSTAR

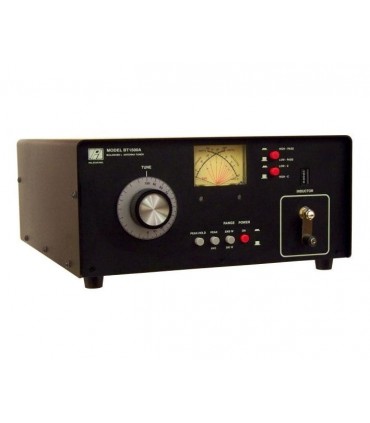

BT-1500-A - Acoplador de antena PALSTAR BT-1500-A

Sintonizador de antena balanceada de red de 1500 L (Double L)

Band coverage from 160m to 10m
Power rating: 1500 watts PEP
Relay switched Hi-Z/Low-Z impedance range
Relay switched Hi-C/Low-C variable capacitor
Total inductance of 44uH for greater impedance range on 160m
Matching range: 160m - 20m (2500+/-j2500) 10m - 15m (1000+/-j1000)
Two tandem-mounted ceramic body roller inductors, silver plated wheel and wheel shaft; crank handle driven with turns counter
Low minimum capacitance, dual-section variable capacitor (960pF/65pF @ 4.5kV) with vernier drive for smooth accurate tuning
Ferrite 1:1 input balun
Peak and Peak Hold dual cross-needle metering (1-2 sec hold) with backlighting
Cabinet metalwork is 11 Ga. (.090") aluminium, iridite coated; front panel and top cover are powder coat finished

Dimensiones: 13 1/4" wide x 6 1/2" high x 16 7/8" deep (including knobs and connectors)
Peso: 17 lbs
