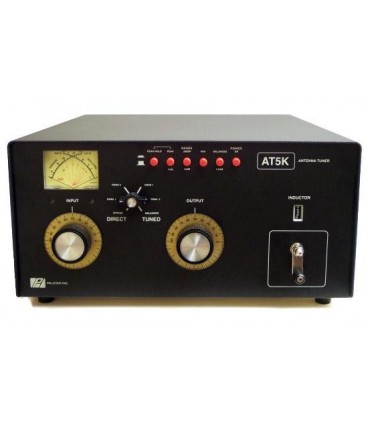

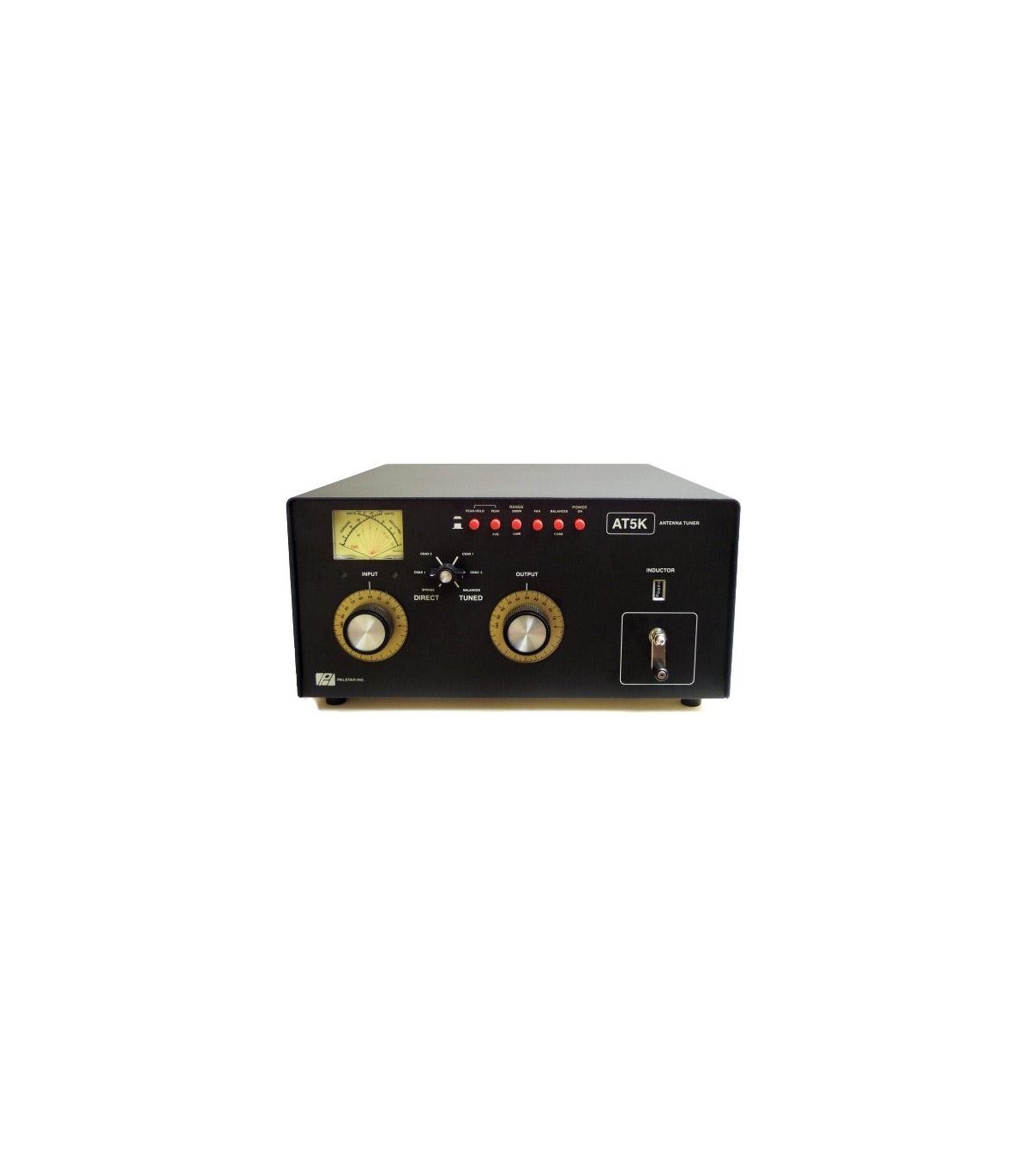

AT-5-K - Antenna Coupler 5 Kw

AT-5-K - Antenna coupler 5 Kw

160m to 15m with limited Z-range at 10m
3500W scale / highly efficient / low tuning losses and wide Z range
Symmetrical output with high power balun made of 5kW Teflon at the tuner circuit input.
Maximum capacity (600pf) by 6kV variable capacitors.
Cylindrical inductor 8.25 cm ceramic 10A 7kV (35oH) wound with silver solid copper cable
6-position switch for switchable antenna input with 7Kv/10A contacts
Ferrite entrance balun 1:1
Peak meter and peak maintenance (1- 2 sec) with backlit cross-needle instrument (supplied with wall transformer)
Forced cooling for 100% operating cycle
Aluminum chassis and top cover and powder-painted top cover.
Dimensions: 20.3 x 40.5 x 45.7 cm (approx.)
Weight: 13.6 Kg.
