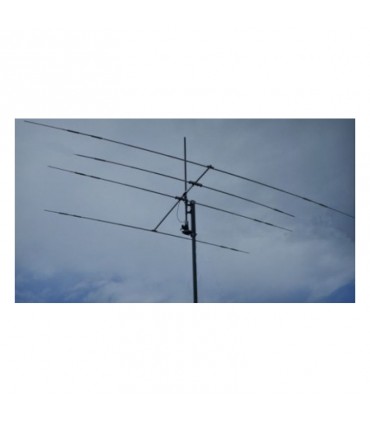

PST-54

The antenna has 3 elements in 10-15-20 bands, the fourth element works as a rotary dipole in 12-17m bands

You can add 30 or 40m upgrade kit, becoming a 6-band.

1:1 balun 2KW with SO239 supplied

Single 50ohm coax

MORE INFO

Specifications:

- Gain 10-15-20m= 6-8 dBd

- Bandwidth 20m = ~250Kc/s, full coverage other bands

- Gain 12-17m = 0dB

- Impedance 50 ohm =

- F/B= 20m 6-8dB, 15m 8-10dB, 10m about 18-20dB

- Front side => 20dB

- ROS = frequency extremes within 1: 1.8 (see chart)

- Boom length = 4m

- Wind area = 0.7m2

- Max wiund speed = 130km/h

- Radius = rotation in about 5m

- Weight = about 28 kg

- Accept mast 48mm (standard) or 60mm (optional)

- Material = AL6060T6, stainless steel hardware

- Encaja con mástile 48mm (estándar) o 60 mm (opcional)

- El material = AL6060T6, tornillos de acero inoxidable.
