Icom AH-109PB

Parabolic Dish 10 GHz , 31 dBi
Read more
Add to wishlist
Related products

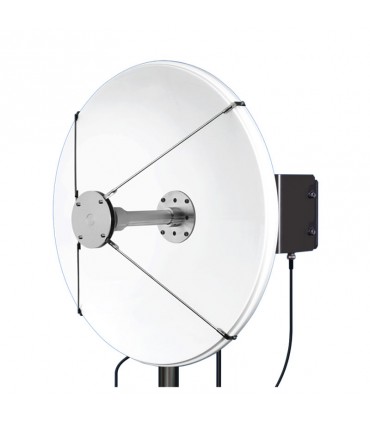

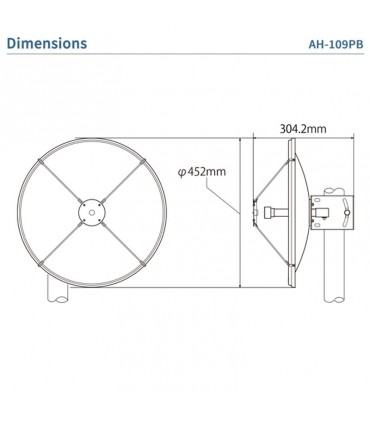

The Icom AH-109PB is a high-performance primary focus mirror (parabolic mirror) for the 10 GHz band. With an impressive gain of 31 dBi, this dish provides excellent signal amplification. With a diameter of 45 cm, it is compact yet powerful.
This makes this a perfect choice for amateur radio use, for example rain scatter, satellite communication via QO-100 and much more. It provides the necessary signal amplification to ensure reliable performance in these applications.
The antenna is adjustable in inclination and suitable for mast diameters from 32 to 60 mm. The AH-109PB parabolic reflector is delivered completely pre-assembled, only the mast mount must be attached. All mounting material is made of stainless steel, an SMA socket, input impedance 50 Ohm, is available as a connection. It is recommended to protect this connector with self vulcanizing tape (optionally available) for ideal weather protection.

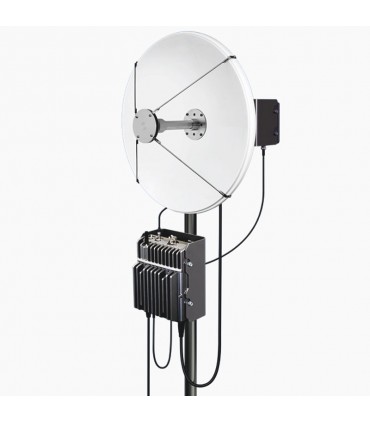

A ready-made semi-rigid coaxial cable is included, perfectly fitting the CX-10G transverter of the IC-905. The included mounting bracket allows mounting the CX-10G directly behind the parabolic reflector.
