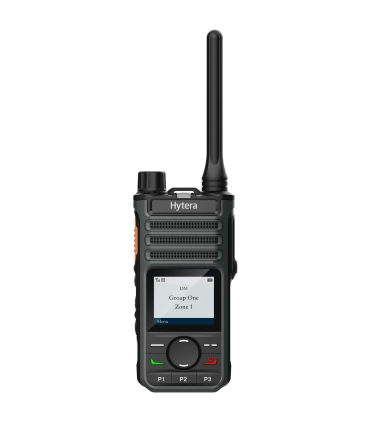

Hytera BP565

The BP5 series uses internationally recognized brand batteries with long service life. It still has 80% of the initial battery capacity after 500 charge and discharge cycles. The radio can be charged from 0% to 100% in just 1.8 hours. After charging for 1 hour, it can work for 10 hours. A 10W fast charger ensures safe and reliable charging that can work in harsh environments such as high or low temperatures.

Supports digital and analog modes, compatible with your existing digital and analog systems and terminals. Powerful digital features such as priority interruption, basic encryption, text messaging and roaming will enhance your business service. The BP565 series has an extended range in its class and features 128 channels, making group communication more flexible.

FEATURE

Frequency range

UHF: 400-470 MHz  or VHF: 136-174 MHz

Channels and zones

Channel capacity: 256

Zone capacity: 8

Channels per zone: 16

Channel Spacing

Analógico: 12,5 kHz/20 kHz/25 kHz

Digital: 12,5 kHz

Operating voltage 7.2V

Battery 1500 mAh (standard) 2200 mAh (optional)

Battery life (5/5/90 duty cycle, high TX power)

Analog: 12 h (1500 mAh) / 16 h (2200 mAh)

Digital: 17 h (1500 mAh) / 23 h (2200 mAh)

Frequency stability ±0.5 ppm

Antenna impedance 50 ohms

Dimensions (H x W x D) 115 mm x 54.5 mm x 29.5 mm

Weight (with antenna and battery) 230 grams

1.77 inch TFT screen

Bluetooth (opcional)Bluetooth 5.0 BLE+EDR

INCLUDING:

Radio Hytera UHF BP565

UHF antenna - connector – for AP5, BP5 series

Belt clip: for AP, BP, HP5, HP6 and PT590 series

Nylon Wrist Strap

MCU Fast Speed ​​Desktop Charger

Power adapter for fast charger (European and British standard plug)

1500 mAh Li-ion Battery for AP585, BP515, BP565
