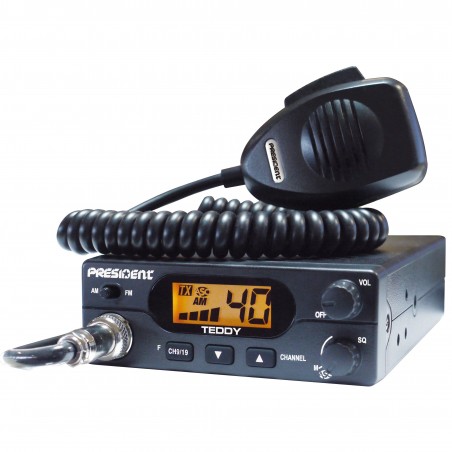

PRESIDENT TEDDY ASC

TEDDY ASC

Read more
€66.12
Last items in stock 2 Items
Reference:
Love0
Add to wishlist
Related products
Description

TECHNICAL FEATURES

- Generals
Channels:40
Modulation modes:AM/FM
Frequency range:26,965 MHz to 27,405 MHz
Antenna impedance:50 ohms
Supply voltage:13.2 V
Dimensions A x L x P (in mm):45 x 125 x 170
Weight:0.6 kg
Accessories included:Fused power cord
1 Electret microphone with its stand
1 bracket with fixing screws
- Broadcast
Frequency Tolerance:+/- 200 Hz
Carrier power:4 W AM / 4 W FM
Parasatic emissions:less than 4 nW (- 54 dBm)
Frequency Response:300 Hz to 3 kHz
Emission power on the adj channel.:less than 20 W
Microphone sensitivity:7 mV
Consumption:1.8 A (modulated)
Max distortion of the modul signal.:2 %
- Reception
Sensitivity max. at 20 dB sinad.:0.5 V - 113 dBm
Frequency response:300 Hz to 3 kHz
Sensitivity of the adj channel.:60 dB
Audio power max.:2 W
Silencer sensitivity (squelch):mini 0.2 V - 120 dBm
max. 1 mV - 47 dBm
Image frequency rejection rate:60 dB
Inter frequency rejection rate.:48 dB
Consumption:600 mA nominal / 950 mA max.
