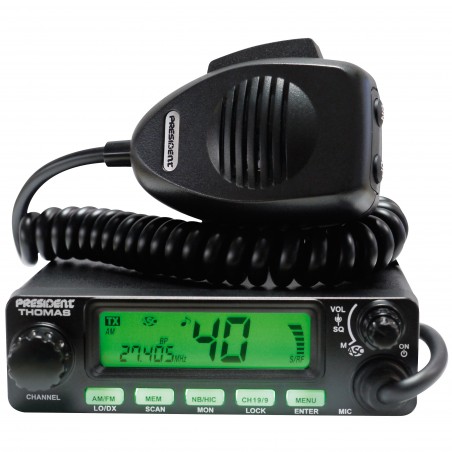

PRESIDENT THOMAS ASC

THOMAS ASC

DECATALOGATED Equivalent

PRESIDENT HARRY III

Read more
€185.00 (tax incl.)
Out-of-Stock
Reference:
Love0
Add to wishlist
Related products
Description

Technical details

- Generals
Channels:40
Modulation modes:AM/FM
Frequency range:26,965 MHz to 27,405 MHz
Ctcss:38 shades
Dcs:104 codes
Antenna impedance:50 ohms
Supply voltage:13.2 V
Dimensions A x L x P (in mm):38 x 125 x 103
Weight:0.7 kg
Accessories included:Fused power cord
1 Up/Down microphone with its stand
1 bracket with fixing screws
- Broadcast
Frequency Tolerance:+/- 200 Hz
Carrier power:4 W AM / 4 W FM
Parasatic emissions:less than 4 nW (- 54 dBm)
Frequency Response:300 Hz to 3 kHz
Emission power on the adj channel.:less than 20 W
Microphone sensitivity:7 mV
Consumption:1.8 A (modulated)
Max distortion of the modul signal.:2 %
- Reception
Sensitivity max. at 20 dB sinad.:0.5 V -113 dBm (AM)
0.35 V -116 dBm (FM)
Frequency response:300 Hz to 3 kHz
Sensitivity of the adj channel.:60 dB
Audio power max.:2 W
Silencer sensitivity (squelch):mini 0.2 V - 120 dBm
max. 1 mV - 47 dBm
Image frequency rejection rate:60 dB
Inter frequency rejection rate.:70 dB
Consumption:300 mA nominal / 750 mA max.
