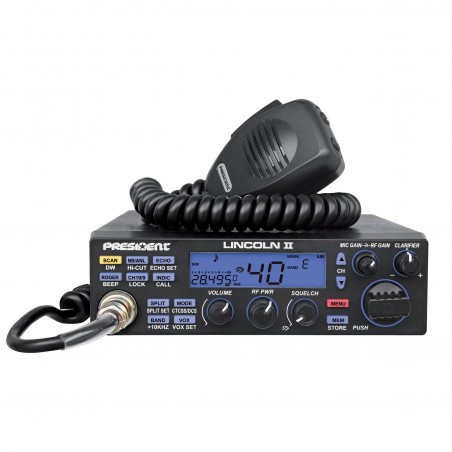

PRESIDENT LINCOLN II PLUS

LINCOLN II

Read more
€285.00 (tax incl.)
CHECK PRICE AND AVAILABILITY
Reference:
Love1
Add to wishlist
Related products
Description

Technical details

- Generals
Bands:10
Modulation modes:AM/FM/LSB/USB/CW
Frequency range:28,000 MHz to 29,700 MHz
Ctcss:38 shades
Dcs:104 codes
Antenna impedance:50 ohms
Supply voltage:13.2 V
Dimensions A x L x P (in mm):52 x 170 x 250
Weight:1.4 kg
Accessories included:Fused power cord
1 Up/Down microphone with its stand
1 bracket with fixing screws
- Broadcast
Frequency Tolerance:+/- 300 Hz
Carrier power:12 W AM / 28 W FM / 31 W USB-LSB / 12 W CW
Parasatic emissions:less than - 50 dBc
Frequency Response:300 Hz to 3 kHz
Emission power on the adj channel.:less than 20 W
Microphone sensitivity:3 mV
Consumption:6 A (modulated)
Max distortion of the modul signal.:1.8 %
- Reception
Sensitivity max. at 20 dB sinad.:0.5 V -110 dBm (AM)
0.35 V -116 dBm (FM)
0.28-V-118 dBm (USB/LSB/CW)
Frequency response:300 Hz to 3 kHz
Sensitivity of the adj channel.:60 dB
Audio power max.:3 W
Silencer sensitivity (squelch):mini 0.2 V - 120 dBm
max. 1 mV - 47 dBm
Image frequency rejection rate:60 dB
Inter frequency rejection rate.:70 dB
Consumption:400 mA nominal, 600 mA max.
