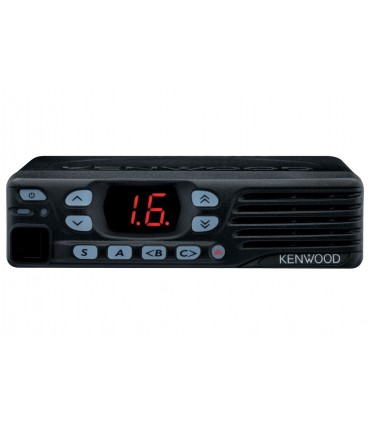

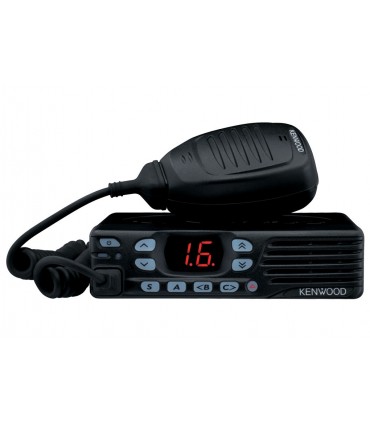

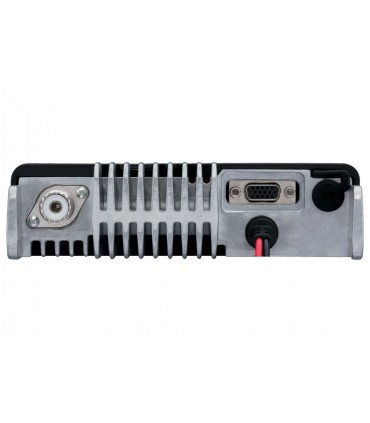

TK-8302E UHF Compact Mobile Transceiver
(SERVED ON REQUEST)
TK-8302E Compact UHF Mobile Transceiver
| DC cable | Yes |
| Fuse | Yes, 10Amp |
| Manual | Yes, English, Spanish, French, German, Italian, Dutch and Turkish |
| Mounting bracket | Yes |
| Fixing screw | Yes |
| Blue LED | Yes |
| Tri-color LED (Red, Orange, Green) | Yes |
| 5-Tone formats signage | ZVEI, ZVEI2, CCIR, EIA, EEA and " KENWOOD " in 5-Tone standard. 2-Stream 5-Tone, 3-Stream 5-Tone plus formats up to 8-Tone |
| Busy channel lock | Yes |
| Numeric display | 2 Characters |
| Compact design | Yes |
| Audio Compressor | Yes |
| Accessory connector DB-15 | Yes, 8 contacts can be programmed individually |
| DTMF PTT ID | Yes |
| Ease of use of operation | Yes |
| Emergency Key Function | Yes |
| Emergency button | Yes |
| Audio KENWOOD Enhanced | Yes |
| FleetSync | Yes |
| Front mount loudspeaker | Yes |
| GPS compatible | Yes |
| Horn / Public Address Alert Functions | Yes |
| Independent functions per channel | Compressor, Wide / Medium / Narrow and Scrambler |
| KENWOOD ESN (Electronic Serial Number) | Yes |
| Key lock | Yes |
| Lone Worker Function | Yes |
| MDC-1200 | Yes |
| Minimum volume setting | Yes |
| Monitor key | Yes |
| Multiple Search Functions | Yes |
| Selectable operation tone | Yes |
| Pre-programmed status messages | Yes. Status messages are pre-programmed 2-digit codes 10 - 99 (numbers 80 - 99 are reserved for special messages). |
| Programmable Keys Function | 9 Programmable Function Keys |
| PTT ID | Yes |
| QT (CTCSS) / DQT (digital) | Yes |
| Remote lock and unlock | Yes |
| Selective Call Features | Yes |
| Selectable Microphone Sensitivity | Yes |
| Selectable Display Illumination | Yes |
| Talk around | Yes |
| "Talk Back" function | Yes |
| Transmission timer | Yes |
| Transceiver Password | Yes |
| Voice Guide | Yes - Radio Mode and Status available in Spanish, English, French, German, Italian, Dutch, Russian or Chinese |
| Voice Inversion Encryption | Yes |
| Voting function | Yes |
| Programming and Adjustment by Windows PC | Yes |
| Cable Cloning Function | Yes |
| State of emergency | Yes |
| ANI Digital PTT ID | Yes |
| Selective call | Yes |
| Emergency Coding | Yes |
| PTT ID encoding | Yes |
| Radio Test Decoding | Yes |
| Decoding Lock / Unlock | Yes |
| Internal GPS Board | Yes - NMEA 0183 V2 compliant |
| Internal Encryption Module | Yes - Available from Transcrypt the KW21-460 |
| "Molex" interface | Via KCT-60M cable |
| IP54 | Yes |
| MIL-STD 810 C / D / E / F | Yes |
| Frequency Range - Type E | 400-470 MHz |
| Number of channels | 16 |
| Number of Zones | two |
| Channel frequency spread | 70 MHz |
| Channel spacing | Wide: 25 kHz Med: 20 kHz Narrow: 12.5 kHz |
| Antenna impedance - 50 Ohm | Yes |
| Antenna Connector | SO-239 |
| Consumption | Standby: ≤ 0.4 A Receipt: ≤ 1.0 A Transmission: ≤ 8.0 A |
| Frequency Tolerance | ± 2.5 ppm (-30 ° C to + 60 ° C) |
| Operating temperature | -30 ° C to + 60 ° C |
| Operating voltage | 13.6 V DC ± 15% |
| PLL Increments per Channel | 5.0 kHz / 6.25 kHz |
| Dimensions | 160 x 43 x 122.6 mm (projections not included) |
| Net weight) | 1.18 Kg |
| Adjacent channel selectivity | Wide / Med / Narrow: 70/70/60 dB |
| Audio output power | 4 W with less than 5% distortion |
| Intermodulation | Wide / Med / Narrow: 65 dB |
| Sensitivity - EIA 12 dB SINAD | 0.28 µV at 25 kHz 0.28 µV at 20 kHz 0.35 µV at 12.5 kHz |
| Sensitivity - EN 20 dB SINAD | -3 dBµV at 25 kHz -3 dBµV at 20 kHz -2 dBµV at 12.5 kHz |
| Spurious Response Rejection | 70 dB |
| Radio Frequency Output Power | 5 - 25 Watts |
| FM noise (EIA) | Wide / Med / Narrow: 45/43/40 dB |
| Modulation distortion | Less than 3% |
| Spurious emission (EN) | -36 dBm ≤ 1 GHz -30 dBm> 1 GHz |
