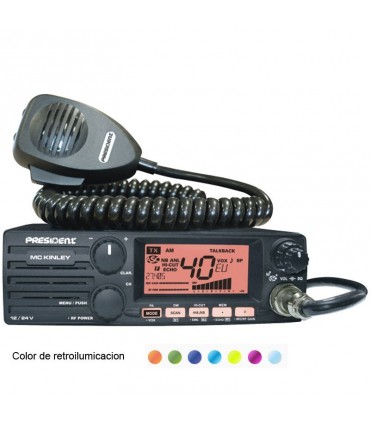

CB 27MHz station PRESIDENT MC-Kinley. This transceiver can be powered at 12V or 24V, has 40 channels with AM, FM, LSB and USB transmission modes. Automatic (ASC) and manual Squelch. It has PA public address function. The operation of this citizen band radio is very intuitive and simple, it is a compact and functional 27 megahertz equipment. For easy installation in vehicles this CB radio transmitter has the microphone connection and the speaker on the front. This gives you clearer and more powerful audio at the reception. The front panel complies with the standard DIN dimensions. The CB transceiver PRESIDENT MCKinley has the following technical characteristics:

- Number of Channels: 40.

- Backlight colors: 7.

- Transmission modes: AM/FM/LSB/USB.

- Frequency range :d e 26.965MHz to 27.405MHz (Channel Expansion)

- Antenna impedance: 50 ohms.

- Supply voltage: 12V or 24V (Auto adjustable).

- Dimensions:170mm x 150mm x 52mm Deep Long High (DIN Format).

- Weight: 1kg.

- 6 pin microphone connector.

- Switch channel selector

- Volume and on/off.

- Manual and automatic Squelch (ASC).

- Adjustable power from the front panel.

- Memory for 5 channels.

- ANL / NB and HICUT filter (High cut).

- Roger Beep PRESIDENT.

- Double Listening (DW).

- Echo function.

- Emergency channel (CH9).

- Preselection channel 19 (CH19).

- Clarifier for side bands.

- Vox function.

- SWR stationary meter.

- Front backlight attenuation (Dimer).

- Digital channel indication

- Received signal level indicator.

- ANL filter (integrated).

- RF Gain.

- TOT (Transmission Limiting Time).

- Microphone socket on the front.

- External speaker jack.

- Frequency Tolerance:+/- 300Hz.

- Carrier power: 4W in AM and FM 12W on sides (SSB).

- Parastic emissions: less than 4nW (-54dBm).

- Frequency Response: 300Hz to 3KHz on AM and FM.

- Microphone sensitivity: 10mV.

- Consumption: 1.7A (modulated in AM and FM) 6A (USB and LSB).

- Max distortion of the modul.:1.8% signal.

- Max sensitivity at 20dB synad.:0.5V - 113dBm (AM/FM).

- Frequency response:300Hz to 3KHz in AM/FM.

- Sensitivity of the adj.:60dB channel.

- Maximum audio power: 3W.

- Mute sensitivity (squelch):mini 0.2 V - 120dBm / maximum. 1mV - 47dBm.

- Image frequency rejection rate: 60dB.

- Internal frequency rejection rate: 70dB.

The package contains:

- An MC-Kinley PRESIDENT .

- A U-type station support.

- A handheld microphone with channel change.

- A power cord 12 / 24 volts.- A metal microphone stand.
