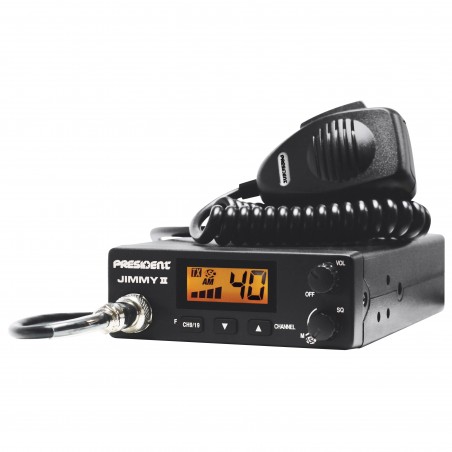

PRESIDENT JIMMY II ASC
Related products
TECHNICAL FEATURES
- Generals
| Channels | : | 40 |
| Modulation modes | : | Am |
| Frequency range | : | 26,965 MHz to 27,405 MHz |
| Antenna impedance | : | 50 ohms |
| Supply voltage | : | 13.2 V |
| Dimensions A x L x P (in mm) | : | 45 x 125 x 170 |
| Weight | : | 0.6 kg |
| Accessories included | : | Fused power cord 1 Electret microphone with its stand 1 bracket with fixing screws |
- Broadcast
| Frequency Tolerance | : | +/- 200 Hz |
| Carrier power | : | 4 W AM |
| Parasatic emissions | : | less than 4 nW (- 54 dBm) |
| Frequency Response | : | 300 Hz to 3 kHz |
| Emission power on the adj channel. | : | less than 20 W |
| Microphone sensitivity | : | 7 mV |
| Consumption | : | 1.8 A (modulated) |
| Max distortion of the modul signal. | : | 2 % |
- Reception
| Sensitivity max. at 20 dB sinad. | : | 0.5 V - 113 dBm |
| Frequency response | : | 300 Hz to 3 kHz |
| Sensitivity of the adj channel. | : | 60 dB |
| Audio power max. | : | 2 W |
| Silencer sensitivity (squelch) | : | mini 0.2 V - 120 dBm max. 1 mV - 47 dBm |
| Image frequency rejection rate | : | 60 dB |
| Inter frequency rejection rate. | : | 48 dB |
| Consumption | : | 600 mA nominal / 950 mA max. |
