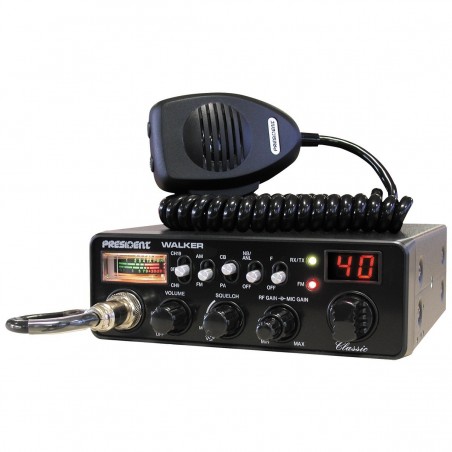

PRESIDENT WALKER II - ASC Classic

PRESIDENT WALKER ASC Classic

Read more
€171.90
Last items in stock 1 Item
Reference:
Love0
Add to wishlist
Related products
Description

TECHNICAL FEATURES

- Generals
Channels : 40
Modulation modes : AM/FM
Frequency range : 26,965 MHz to 27,405 MHz
Antenna impedance : 50 ohms
Supply voltage : 13.2 V
Dimensions A x L x P (in mm) : 55 x 160 x 160
Weight : 1.1 kg
Accessories included : Fused power cord
1 Up/Down microphone with its stand
1 bracket with fixing screws
- Broadcast
Frequency Tolerance : +/- 300 Hz
Carrier power : 1 W AM / 4 W FM
Parasatic emissions : less than 4 nW (- 54 dBm)
Frequency Response : 300 Hz to 3 kHz in AM/FM
Emission power on the adj channel. : less than 20 W
Microphone sensitivity : 3 mV
Consumption : 2 A (modulated)
Max distortion of the modul signal. : 2 %
- Reception
Sensitivity max. at 20 dB sinad. : 0.5 V - 113 dBm (AM/FM)
Frequency response : 300 Hz to 3 kHz in AM/FM
Sensitivity of the adj channel. : 60 dB
Audio power max. : 5 W
Silencer sensitivity (squelch) : mini 0.2 V - 120 dBm
max. 1 mV - 47 dBm
Image frequency rejection rate : 60 dB
Inter frequency rejection rate. : 70 dB
Consumption : 400 mA nominal / 1500 mA max.
